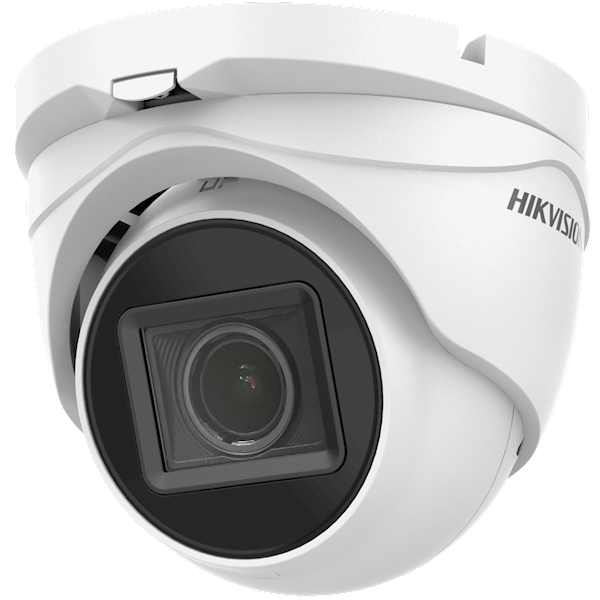

5 MP Motorized Varifocal Turret Camera
Camera
- Beeldsensor5 MP CMOS
- SignaalsysteemPAL/NTSC
- Oplossing2560 (H) × 1944 (V)
- Frame Rate
TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps
CVI: 4 M @ 30 fps, 4 M @ 25 fps
CVBS: PAL/NTSC
- Min. Verlichting0,01 Lux @ (F1.2, AGC AAN), 0 Lux met IR
- SluitertijdPAL: 1/25 s tot 1/50.000 s;NTSC: 1/30 s tot 1/50.000 s
- LensGemotoriseerde varifocale lens van 2,7 mm tot 13,5 mm
- Gezichtsveldhorizontaal gezichtsveld: 95° tot 26°, verticaal gezichtsveld: 72° tot 20°, diagonaal gezichtsveld: 126° tot 33°
- Lens BevestigingspuntΦ14
- Dag NachtIR-snijfilter
- WDR (Groot Dynamisch Bereik)Digitale WDR
- Hoekaanpassing:Pan: 0° tot 360°, Tilt: 0° tot 75°, Rotatie: 0° tot 360°
Afbeelding
- Dag/Nacht-ModusAuto/Kleur/ZW (zwart-wit)
- AfbeeldingsmodusSOA/HIGH-SAT
- AGCJa
- WitbalansAutomatisch/handmatig
- AE-Modus (Automatische Belichting)BLC;HLC;Globaal;DWDR
- Ruisonderdrukking2D DNR
- TaalEngels
- FunctieScherpte;Helderheid;Smart IR
Koppel
- Video UitgangSchakelbare TVI/AHD/CVI/CVBS
Algemeen
- IR-BereikTot 40 m
- Bedrijfsomstandigheden:-40 °C tot 60 °C (-40 °F tot 140 °F), vochtigheid: 90% of minder (niet-condenserend)
Stroomvoorziening
12 VDC ± 15%
*Het wordt aanbevolen om één voedingsadapter te gebruiken om één camera van stroom te voorzien.
Consumptie
- Maximaal 6,2 W
- BeschermingsniveauIP67
- MateriaalMetaal
- CommunicatieHIKVISION-C
- Dimensie123,87 mm × 110,24 mm × 134,3 mm (4,87" × 4,34" × 5,29")
- Ca. 555 g (1,22 lb.)
