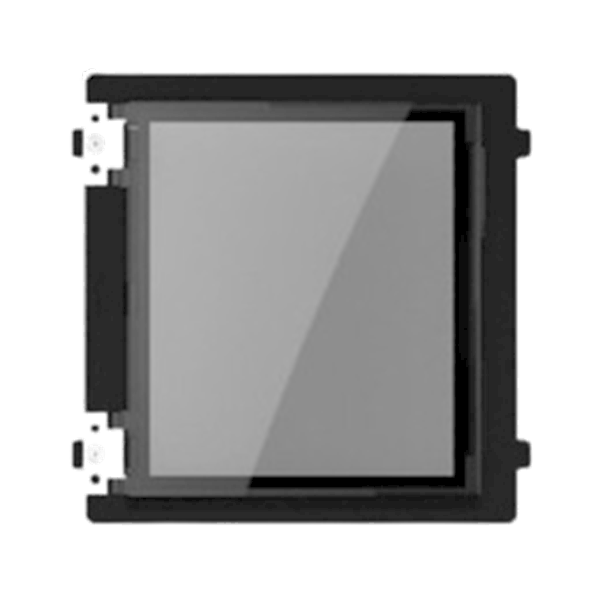

Modulaire intercom informatiescherm
System parameters
Operation method: Backlight controlled via client software
Interfaces
Moduleconnecting: 2 (1 input, 1 output) Debugging port 1
General
DIP switch: 8
Power supply: 12 VDC (powered by the other module)
Power output: 12 VDC (powered for the other module)
Power consumption: ≤ 1.5 W
Working temperature: -20 °C to 60 °C(-4 °F to 140 °F)
Working humidity: 10% to 95%
Installation: Flush mounting, surface mounting
Dimension: 98.42 mm × 94.4 mm × 33.8 mm (3.87" × 3.72" × 1.34")
